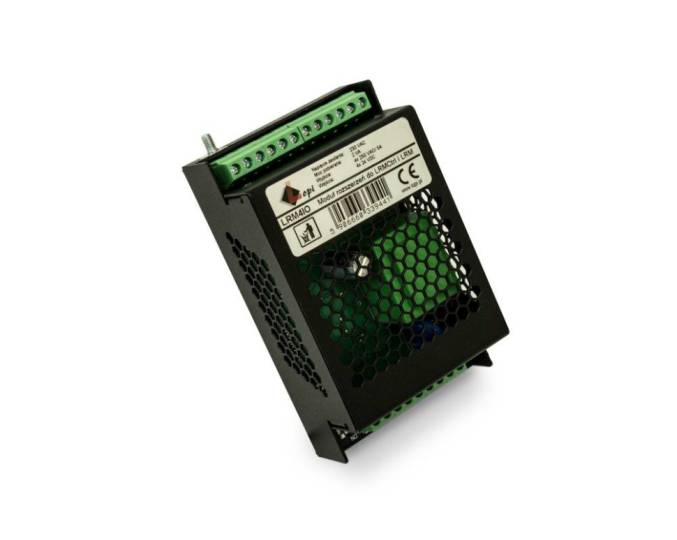

LRM4IO expansion module

We would like to present the accessories, which complement our existing range of products and expand it with new, additional functionalities. At Lopi, we constantly strive to ensure that our reactive power compensation systems work as efficiently as possible. At the same time, we want them to be intuitive to use and economical in operation as well as to extend the service life of all the components of the power system. Therefore, we are expanding our solutions for reactive power compensation with new devices.

  • Application
  • Functionalities
  • Technical informations
  • Downloads
  • Gallery
  • Application

    • development of inductive and capacitive reactive power compensation systems by increasing their capabilities and functionality
    • data transmission systems of selected areas
    • management through the power guard
  • Functionalities

    • registration of changes at signalling inputs with the readout option
    • control of the access to rooms and devices
    • signalling of open door
    • smoke detector
    • readout of water, electricity and CO2 consumption
    • option to permanently switch on the relay outputs or via the control impulse
    • control via RS 485, MODBUS protocol
    • device addresses set by a three-position DIP SWITCH adjuster
    • device address range from 100 to 107
  • Technical informations

    Power supply voltage
    230 VAC ± 10%, 50 Hz
    Power consumption
    maximum to 2 VA
    Ambient temperature
    -20°C 60°C
    Relative humidity
    50% for +40°C, 90% for 60°C
    Level of security
    0,3 kg
    70x116x44 mm
    Communication with the device
    RS485 Modbus/RTU
    Control voltage
    24 VDC±10% input

    Additional technical informations

    max 2,5 mm2
    4 relay outputs 5A/250 VAC, 5A/24 VDC
