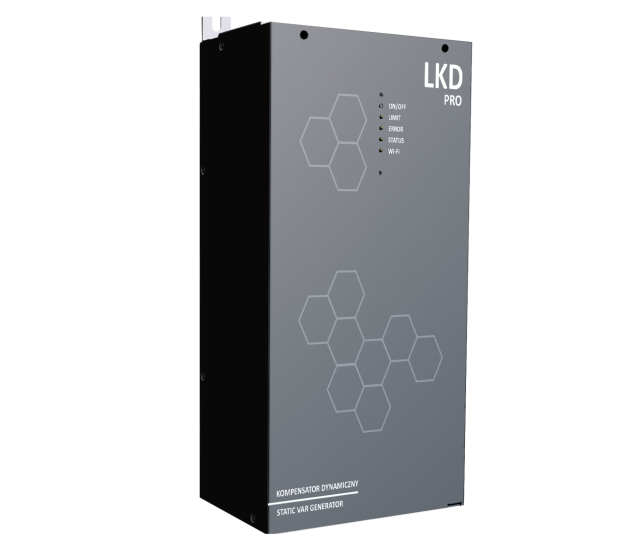

LKD PRO dynamic compensator

LKD PRO dynamic compensators (Static Var Generators) are innovative devices designed to compensate inductive and capacitive reactive power. They are distinguished by an additional distortion power compensation function. It is a solution, which gives the possibility of low-loss reactive power compensation as well as compensation of selected harmonic components.
Traditional capacitive reactive power compensation systems designed with single- or three-phase shunt reactors are controlled by reactive power regulators. These solutions are less and less popular due to numerous limitations. We take into account high own losses of the compensation systems, ranging from 50 to 80 W per 1 kvar, long response times (fast-changing loads), network impedance changes and the need to maintain cosφ on the induction side, which is associated with additional losses.
Dynamic compensators (Static Var Generators) fully replace conventional capacitor banks and shunt banks, while raising the standard of operation by filtering higher harmonics. When using LKD compensators, the user gains a significant reduction in the compensation system's own losses. And due to the filtering higher harmonics, the apparent power is reduced, which translates directly into even higher reduction of electricity bills.
The dynamic compensator (Static Var Generators) has infinitely variable compensation of reactive power and distortion power. The own losses of the device have been minimised to 17 W per 1 kvar. It is possible to effectively reduce network distortions to the 25th harmonic and provide active compensation of reactive power along with network load balancing.


Dynamic compensator LKD 5

  • Application
  • Functionalities
  • Technical informations
  • Downloads
  • Gallery
  • Application

    •    server rooms and data centres
    •    office buildings and warehouses
    •    hospitals
    •    shopping centres
    •    banks
    •    industrial buildings
    •    production halls
    •    housing communities
    •    networks with photovoltaic systems

    Dynamic compensator  LKD 5
  • Functionalities

    •    stepless inductive/capacitive reactive power compensation
    •    compensation of higher harmonics up to 25th
    •    load symmetrisation
    •    generation of the preset Q/L reactive power
    •    selective selection of operating functions
    •    low own losses
    •    control of L/Q passive modules
    •    possible versions: free-standing/rack housing/street lighting module

    Dynamic compensator  LKD 5
  • Technical informations

    Ambient temperature
    -20˚C +50˚C
    Level of security
    IP20
    Weight
    20,3 kg
    Communication
    RS 485
    Ventilation
    forced

    Additional technical informations

    Compensation power
    ± 5 kVar
    Maximum compensation current RMS
    8 A
    Maximum compensation current Peak
    14,4 A
    Working voltage
    3x400 VAC +/- 10%
    Voltage frequency
    50/60 Hz
    CT
    5/5 ˞ 600/5
    Compensation effectiveness
    ≥ 99,5%
    PF
    -1 do 1
    Operating frequency
    32 kHz
    Harmonic compensation
    do 25-tej
    Technology
    SiC
    Adjustment time
    100ms
    Response time
    20ms
    Network installation
    czteroprzewodowa
    Own losses
    85 W
    Noise level
    < 65 dB
    Working altitude m.a.s.l.
    < 1500
    Communication protocol
    Modbus (RTU)
    HMI display
    option
    Dynamic compensator  LKD 5
  • Downloads

  • Gallery

Dynamic compensator LKD 10

  • Application
  • Functionalities
  • Technical informations
  • Downloads
  • Gallery
  • Application

    • server rooms and data centres
    • office buildings and warehouses
    • hospitals
    • shopping centres
    • banks
    • industrial buildings
    • production halls
    • housing communities
    • networks with photovoltaic systems
    Dynamic compensator LKD 10
  • Functionalities

    • stepless inductive/capacitive reactive power compensation
    • compensation of higher harmonics up to 25th
    • load symmetrisation
    • generation of the preset Q/L reactive power
    • selective selection of operating functions
    • low own losses
    • control of L/Q passive modules
    • possible versions: free-standing/rack housing/street lighting module
    Dynamic compensator LKD 10
  • Technical informations

    Ambient temperature
    -20˚C +50˚C
    Level of security
    IP20
    Weight
    11,30
    Communication
    RS 485
    Communication with the device
    Ventilation
    forced

    Additional technical informations

    Compensation power
    ± 10 kVar
    Maximum compensation current RMS
    16 A
    Maximum compensation current Peak
    28,8 A
    Working voltage
    3x400 VAC +/- 10%
    Voltage frequency
    50/60 Hz
    CT
    5/5 ˞ 2000/5
    Compensation effectiveness
    ≥ 99,5%
    PF
    -1 do 1
    Operating frequency
    32 kHz
    Harmonic compensation
    to 25-th
    Technology
    SiC
    Adjustment time
    100ms
    Response time
    20ms
    Network installation
    four-wired
    Own losses
    170 W
    Noise level
    < 65 dB
    Working altitude m.a.s.l.
    < 1500
    Expandability
    -
    Communication protocol
    Modbus (RTU)
    HMI display
    option
    Dynamic compensator LKD 10
  • Downloads

  • Gallery

Dynamic compensator LKD 15

  • Application
  • Functionalities
  • Technical informations
  • Downloads
  • Gallery
  • Application

    •    server rooms and data centres
    •    office buildings and warehouses
    •    hospitals
    •    shopping centres
    •    banks
    •    industrial buildings
    •    production halls
    •    housing communities
    •    networks with photovoltaic systems

    Dynamic compensator LKD 15
  • Functionalities

    •    stepless inductive/capacitive reactive power compensation
    •    compensation of higher harmonics up to 25th
    •    load symmetrisation
    •    generation of the preset Q/L reactive power
    •    selective selection of operating functions
    •    low own losses
    •    control of L/Q passive modules
    •    possible versions: free-standing/rack housing/street lighting module

    Dynamic compensator LKD 15
  • Technical informations

    Ambient temperature
    -20˚C +50˚C
    Level of security
    IP20
    Weight
    14,00 kg
    Communication
    RS 485
    Ventilation
    forced

    Additional technical informations

    Compensation power
    ± 15 kVar
    Maximum compensation current RMS
    16 A
    Maximum compensation current Peak
    28,8 A
    Working voltage
    3x400 VAC +/- 10%
    Voltage frequency
    50/60 Hz
    CT
    5/5 ˞ 2000/5
    Compensation effectiveness
    ≥ 99,5%
    PF
    -1 do 1
    Operating frequency
    32 kHz
    Harmonic compensation
    to 25th
    Technology
    SiC
    Adjustment time
    100ms
    Response time
    20ms
    Network installation
    four-wire
    Own losses
    170 W
    Noise level
    < 65 dB
    Working altitude m.a.s.l.
    < 1500
    Expandability
    -
    Communication protocol
    Modbus (RTU)
    HMI display
    option
    Dynamic compensator LKD 15
  • Downloads

  • Gallery

Dynamic compensator LKD 25

  • Application
  • Functionalities
  • Technical informations
  • Downloads
  • Gallery
  • Application

    •    server rooms and data centres
    •    office buildings and warehouses
    •    hospitals
    •    shopping centres
    •    banks
    •    industrial buildings
    •    production halls
    •    housing communities
    •    networks with photovoltaic systems

    Dynamic compensator LKD 25
  • Functionalities

    •    stepless inductive/capacitive reactive power compensation
    •    compensation of higher harmonics up to 25th
    •    load symmetrisation
    •    generation of the preset Q/L reactive power
    •    selective selection of operating functions
    •    low own losses
    •    control of L/Q passive modules
    •    possible versions: free-standing/rack housing/street lighting module

    Dynamic compensator LKD 25
  • Technical informations

    Ambient temperature
    -20˚C +50˚C
    Level of security
    IP20
    Weight
    14,30 kg
    Communication
    RS 485, LAN
    Ventilation
    forced

    Additional technical informations

    Compensation power
    ± 20 kVar
    Maximum compensation current RMS
    40 A
    Maximum compensation current Peak
    72 A
    Working voltage
    3x400 VAC +/- 10%
    Voltage frequency
    50/60 Hz
    CT
    5/5 ˞ 3000/5
    Compensation effectiveness
    ≥ 99,5%
    PF
    -1 do 1
    Operating frequency
    32 kHz
    Harmonic compensation
    do 25-tej
    Technology
    SiC
    Adjustment time
    100ms
    Response time
    20ms
    Network installation
    four-wire
    Dynamic compensator LKD 25
  • Downloads

  • Gallery
